KYDEX thermoplastic boards

KYDEX boards are an extremely durable plastic material extruded from special thermoplastic mixtures of high mechanical strength, the properties of which have been developed based on the requirements of non-standard applications. KYDEX boards are used, among other things, to manufacture housings for medical equipment, parts for aviation seats, shop equipment and furniture and their parts. They are an excellent substitute for painted metals, glass fibre, HPL and many other thermoplastic materials, e.g. PC or FR-ABS.

The KYDEX boards are available in many varieties, in standard and custom colours, e.g. wood-like and metallic.


  • Impact resistance, scratching resistance and gouging resistance
  • Dimensional stability – low water absorption, high plastic forming capacity
  • Resistance to atmospheric conditions
  • Fire resistance – fire degrees UL 94 V-0 and 5V, UL746C, FAR 25,853, BS 476, MVSS 302, Class 1/A, ASTM E-162 and ASTM E-662
  • Chemical resistance
  • Easy to clean, resistant do discolouration and surface damage
  • Structural flexibility
  • 3500 custom colours, including metallic, granite patterns and wood-like patterns
  • 8 knurl types
  • Design of applications
  • Thickness range: 0.56 mm - 12.7 mm
  • Reference standards:
    Electronics: UL 94 V-0&5V, DIN 5510-2
    Aviation: FAR 25.853
    Mass transport: FTA, FRA, EC 95/28/EG, SMP800C
    Construction engineering: Class 1/A, BS476, DIN 4102-B1
  • RohS-compliant

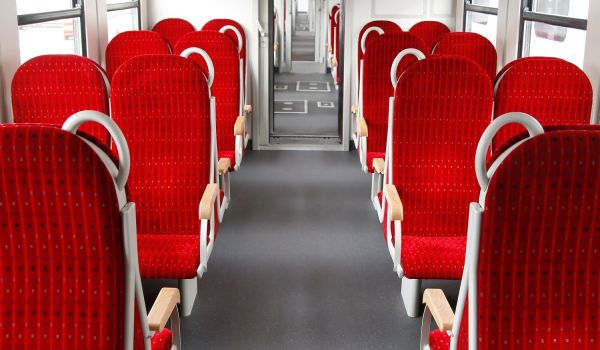

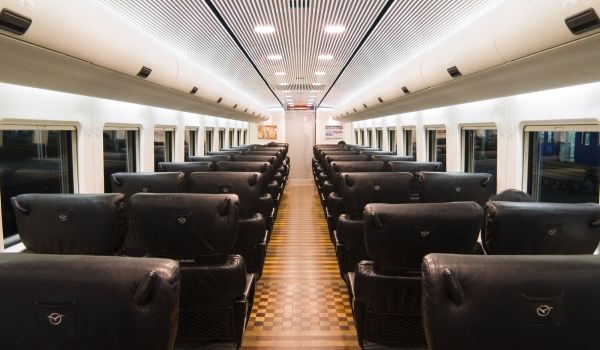

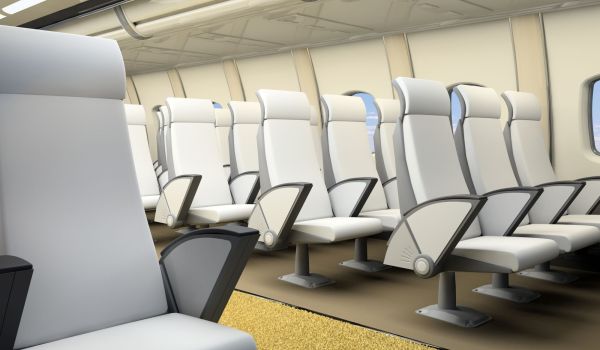

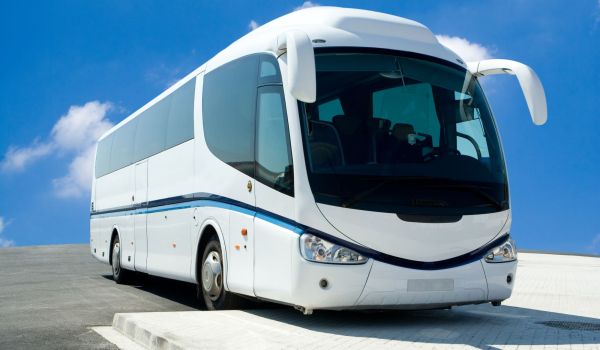

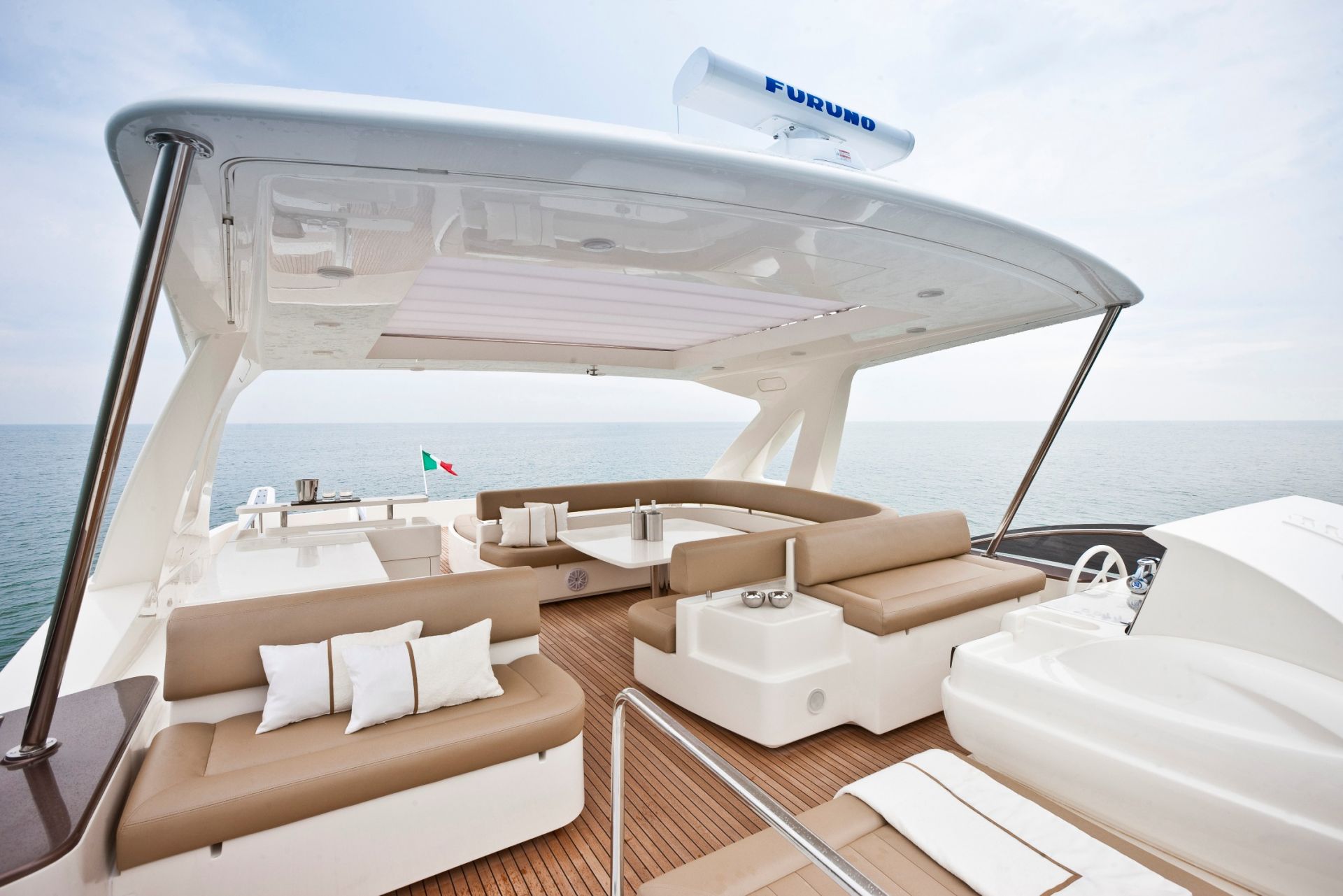

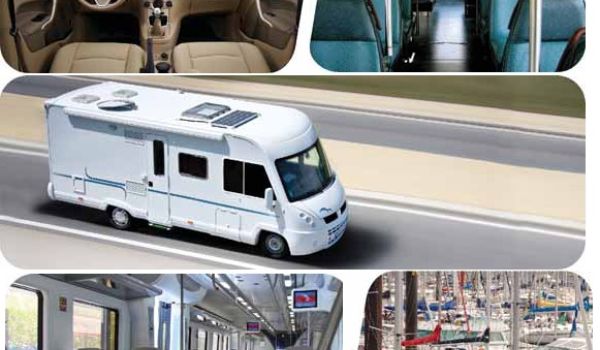

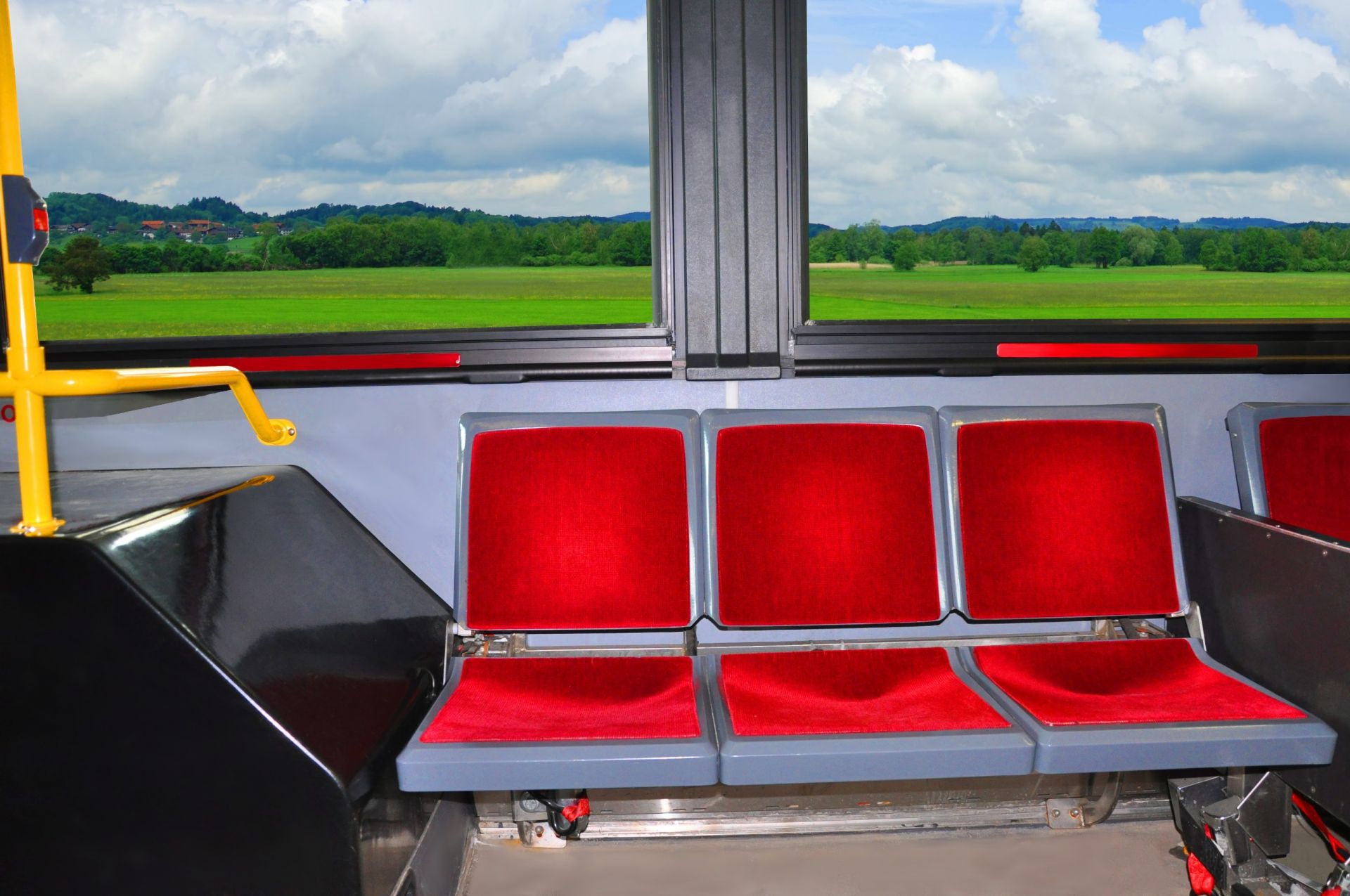

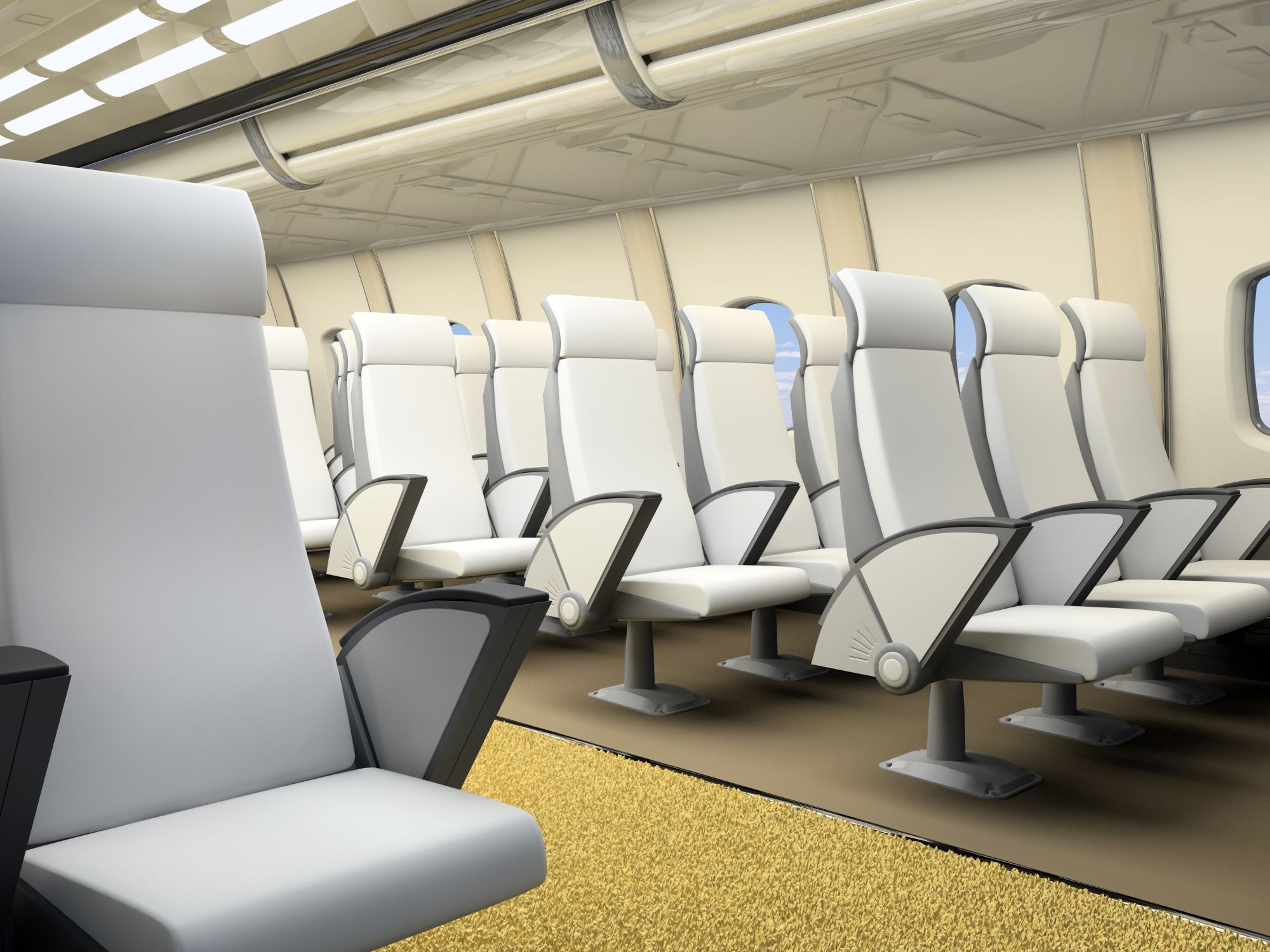

  • Components of aircraft, public transportation vehicles, tourist vehicles and boat interiors
  • Medical products
  • Shop and furniture cabins
  • Structural components of devices
  • Construction engineering products
  • Indoor playgrounds
  • Weapon holsters and knife sheaths
  • Hockey shields
  • Components of telephone booths
  • Wall and ceiling panels for the food industry
  • Housings for luminous advertising media and trademarks
  • Finishing of walls and ceilings of sterile rooms


  • Heat forming, pressure moulding, secondary moulding, membrane moulding and two-box moulding
  • Lamination
  • Bevelled angular connections
  • Moulding with bending brakes and machining
  • Decorative effects: granite, wood, perforated
If you have any questions, contact us.
